Scan 1003 BB VE Inset Woodburning Stove

Scan 1003 BB VE Inset Woodburning Stove

The Scan 1000-series consists of a number of elegant and exclusive stove inserts in different sizes. The discreet and exclusive built-in-model Scan 1003 and 1004 have a classic black glass  door and black trim and vermiculite brick set.

A cool glass handle on the door completes the pure expression and seperates the model from it’s competitors on the market. The insert distributes the heat optimally and gives you a wide screen view to the fire. Scan 1003 takes logs up to 50 cm and Scan 1004 takes logs up to 65cm.

Ecodesign Ready

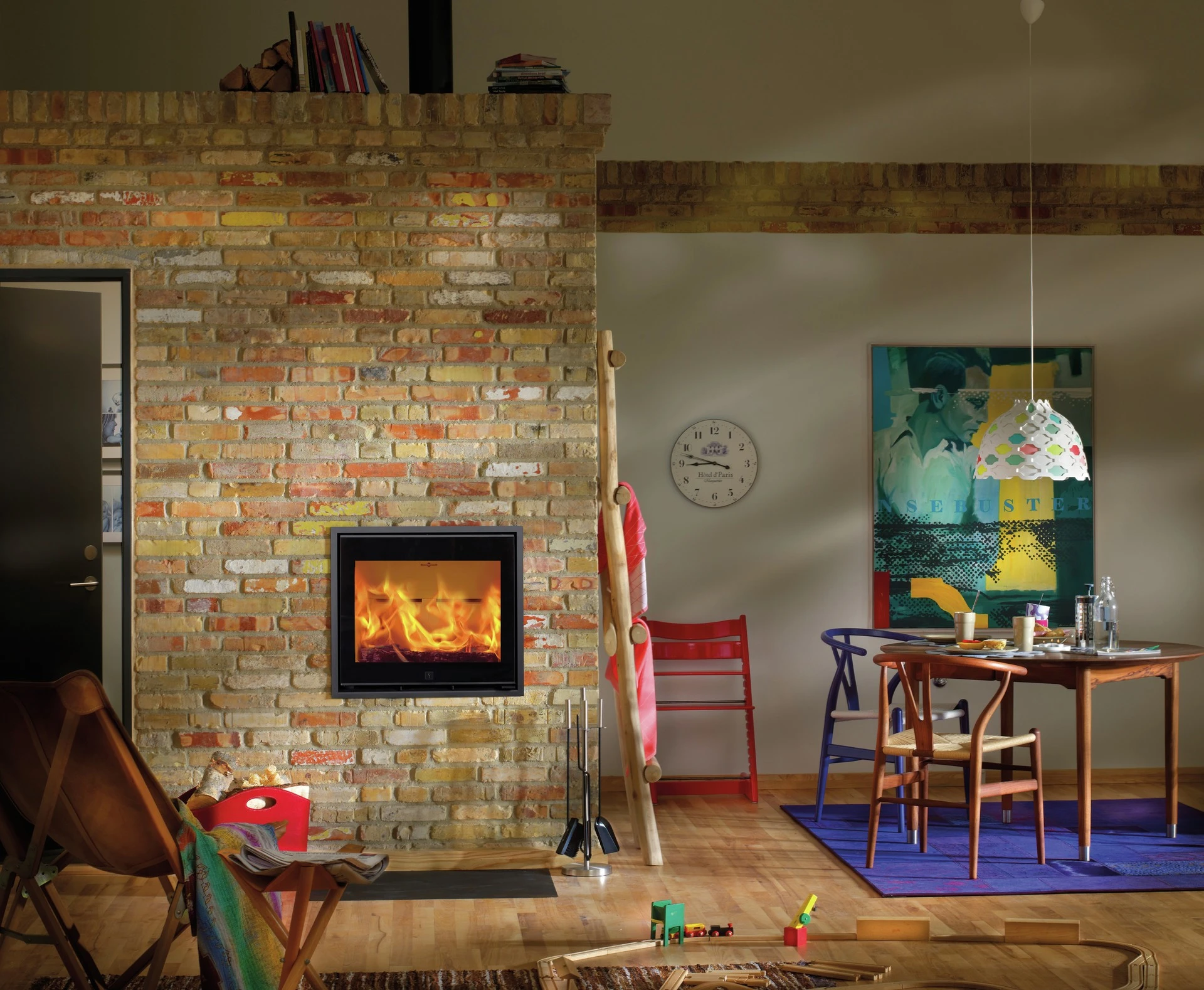

Scan 1003 is a flush insert with black glass and black trim.
Simple and stylish design
Height: 566 mm
Width: 650 mm
Depth: 438 mm
Weight: 103 kg
Log size: up to 50.00 cm
Flue outlet: Ø 148.00 mm
Flue exit options: Top / Rear
Min output: 3.0 kW
Nom output: 7.2 kW
Max output: 9.0 kW
Efficiency: 80 %
Heating capacity: up to 140 m²
CO Emission: 0.07 %
Dust Product Emission: 27 mg/Nm³NOx
Emission: 95 mg/Nm³
Closed combustion: Yes
Clean burn: Yes
External air intake: Yes
