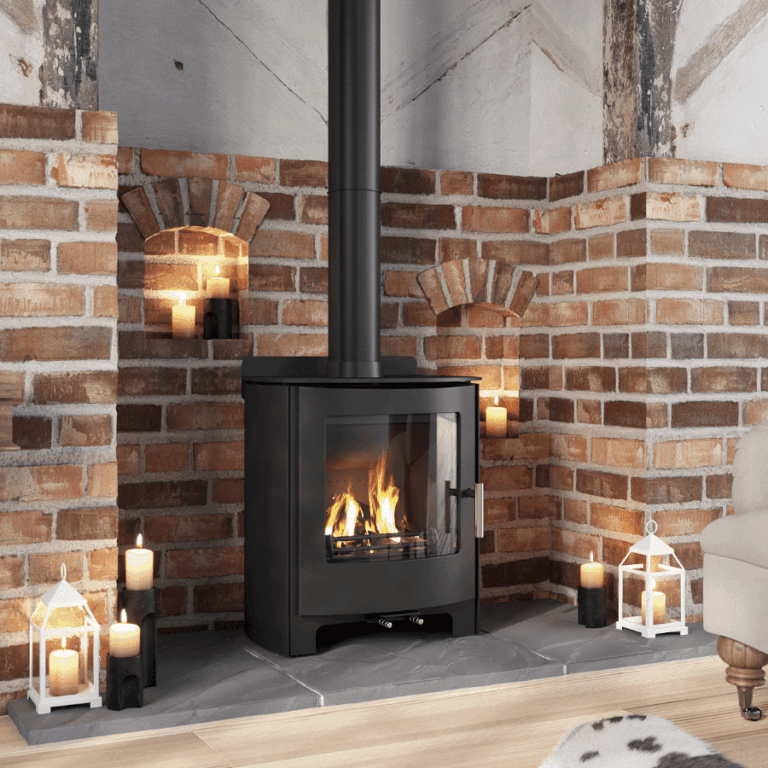

Mendip Churchill 5 SE Convection Dual Control Woodburning/Multifuel Stove

Mendip Churchill 5 SE Convection Dual Control Woodburning/Multifuel Stove

The Churchill 5 Dual Control stove boasts an elegant cast iron curved door, skillfully designed to fit the stove’s body seamlessly. Its generous glass area and impressive efficiency figures make it the perfect contemporary addition to any home.

Equipped with innovative dual air controls, you can now finely adjust the airflow into the fire chamber, allowing for optimal operation and enhanced performance.

This stove is not only visually stunning but also practical. Its contemporary curved convection panels reduce the distance to combustibles on the sides to just 150mm, making it an excellent choice for open-plan living spaces. With an A+ energy efficiency rating, it offers multi-fuel burning, closed combustion for improved efficiency, and a modern freestanding design that complements any decor or property style.

Generating a nominal heat output of 5kW, the Churchill 5 is safety tested for installation on a glass floorplate and features an 80mm direct air spigot, ensuring it becomes the focal point of your room.

City dwellers will appreciate this stove’s DEFRA approval, allowing it to burn wood and smokeless fuels even in smoke control areas. With all these features, the Churchill 5 Convection Dual Control truly offers the ideal solution for making your home warm and inviting.

Ecodesign Ready
Defra Approved

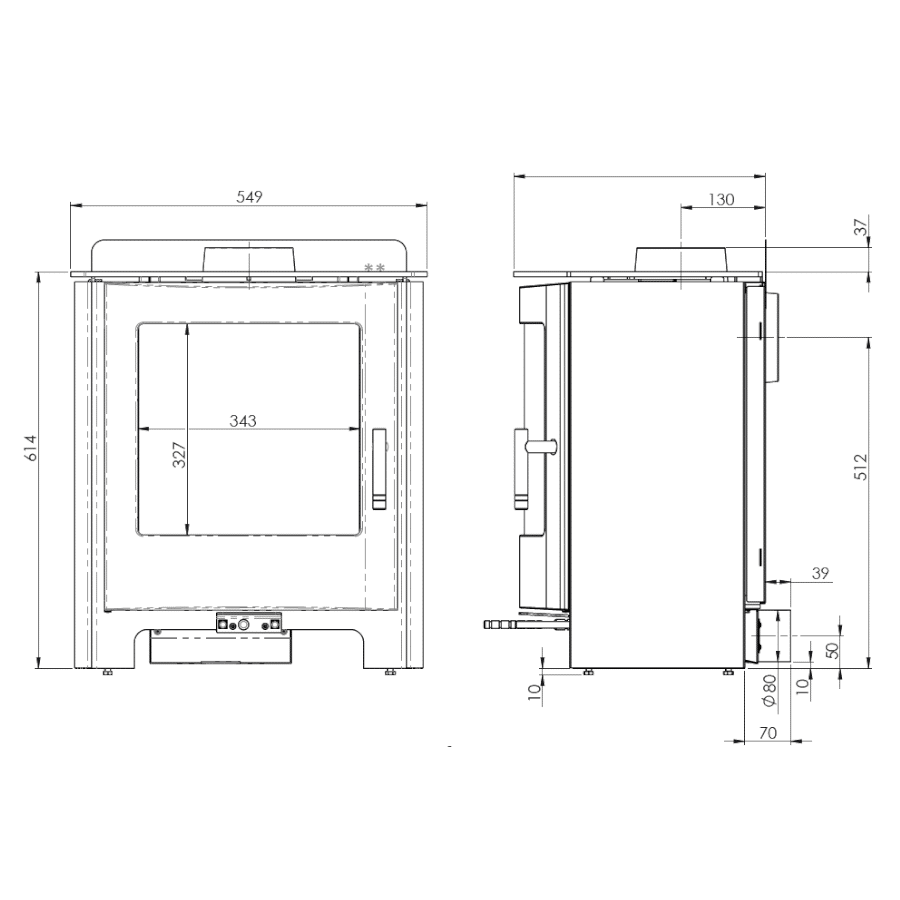

Height 614mm
Width 549mm
Depth 388mm
Weight 100kg
Fuel Type MF – Wood & Smokeless Fuels
Flue outlet size 125 mm
Nominal Output 5kW
Output Range 3-6kW
Energy Rating A+
Efficiency W 79.5% C 76.4%
CO @ 13% 0.08
Particulates mg/mo3 @13% 27/17
Maximum log length 35cm
Distance combustible materials rear 75mm
Distance to combustibles rear with collar convector fitted 100mm
Distance combustible materials side 150mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 512mm
Optional closed combustion
Closed Combustion Outlet Size 80mm
Suitable for glass floor plate
