Mendip Churchill 5 SE Convection Dual Control Logstore Woodburning/Multifuel Stove

Mendip Churchill 5 SE Convection Dual Control Logstore Woodburning/Multifuel Stove

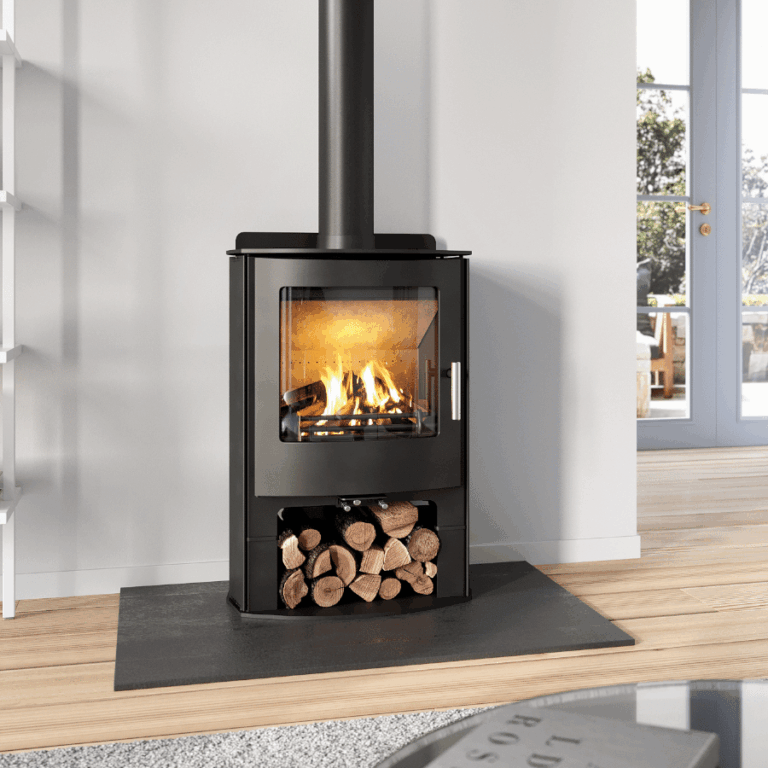

The Churchill 5 Dual Control features a beautiful cast iron curved door, skillfully crafted to perfectly fit the body of the stove. Its large glass area and impressive efficiency figures make it the ideal modern stove for your home.

The Churchill 5 Convection Logstore Dual Control also features contemporary curved convection panels which lower the distance to combustibles to the sides of the stove to 150mm, and the handy addition of a logstore below the stove, which lifts the fire up into your room for an even better viewing experience.

With new dual air controls, you can even more precisely control the amount of air coming into the fire chamber to allow you to operate it most effectively.

A+ rated for energy efficiency, it offers multi-fuel burning, closed combustion for better efficiency and a contemporary freestanding design that complements all decors and property styles.

Emitting a nominal heat output of 5kW, safety tested to be installed on a glass floorplate, and with an 80mm direct air spigot the Churchill 5 will create a focal point in your room.

Ideal for city dwellings – this stove has been approved by DEFRA to burn wood and smokeless fuels in smoke control areas.

Ecodesign Ready
Defra Approved

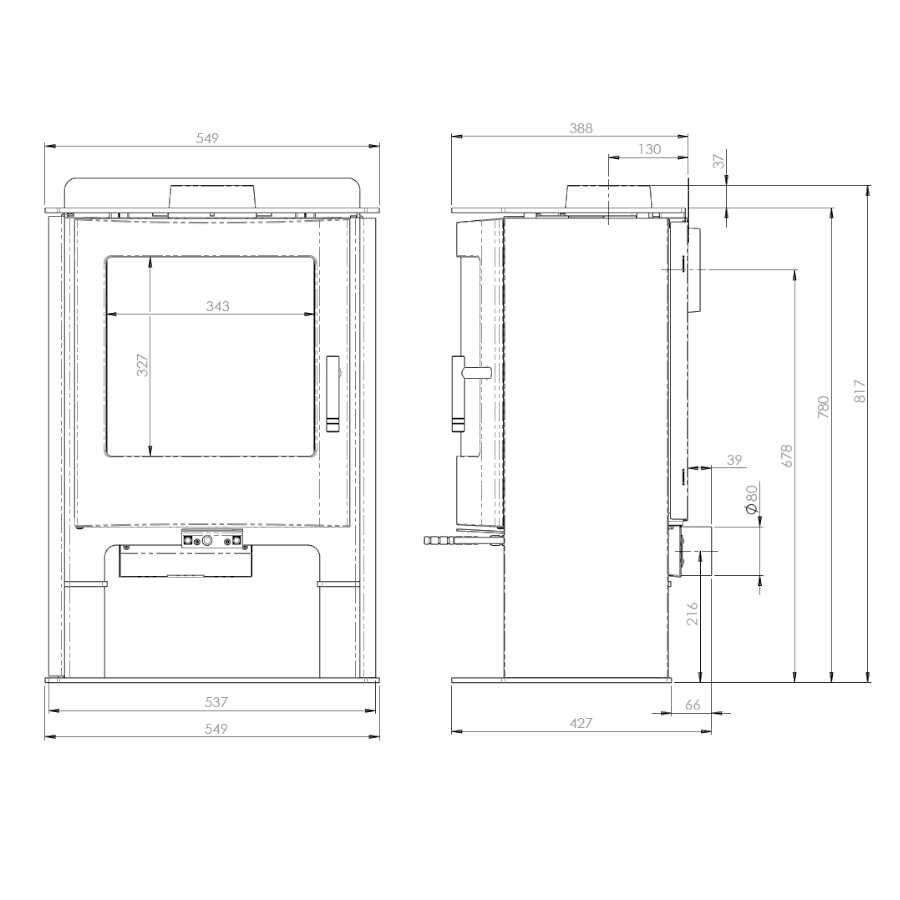

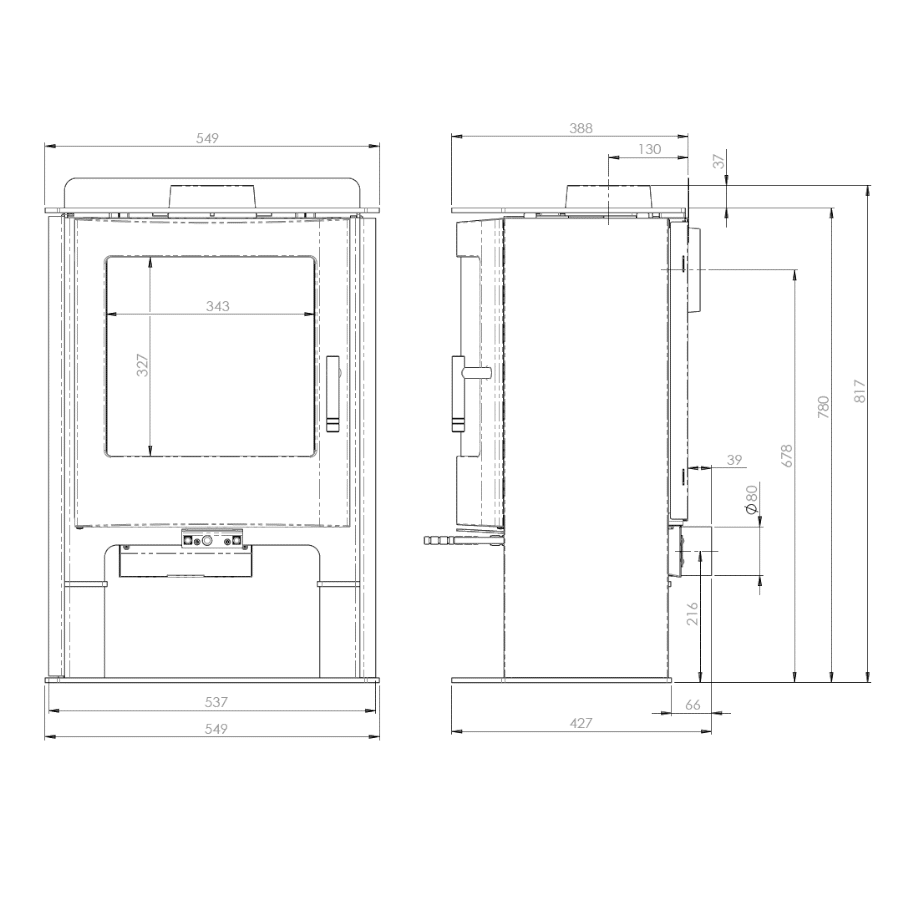

Height 780mm
Width 549mmDepth 388mm
Weight 110kg
Fuel Type MF – Wood & Smokeless Fuels
Flue outlet size 125 mm
Nominal Output 5kW
Output Range 3-6kW
Energy Rating A+
Efficiency W 79.5% C 76.4%
CO @ 13% 0.08
Particulates mg/mo3 @13% 27/17
Maximum log length 35cm
Distance combustible materials rear 75mm
Distance to combustibles rear with collar convector fitted 100mm
Distance combustible materials side 150mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 678mm
Optional closed combustion
Closed Combustion Outlet Size 80mm
Suitable for glass floor plate
